How to Select an Electronic Pressure Regulator
Selecting the correct electronic pressure regulator requires matching electrical input requirements, output pressure range, flow capacity, and performance characteristics to your pneumatic control system. Important considerations include accuracy, response time, control signal compatibility, environmental conditions, and application requirements.
Applications requiring highly accurate and dynamic pressure control benefit from regulators with closed-loop feedback systems, fast response times, and stable output pressure. High-flow systems require regulators capable of maintaining pressure stability under changing demand, while automated manufacturing systems may require network communication protocols or PLC integration capabilities.
Important selection considerations include:
- Input signal type (4–20 mA, 0–10 VDC, RS485 Modbus)
- Required output pressure range
- Flow capacity requirements
- Accuracy and repeatability requirements
- Response time and control stability
- Internal vs. external feedback control
- Vacuum vs. positive pressure control
- Environmental and hazardous-area requirements
- Port size and mounting configuration
- PLC and automation system compatibility
Closed-loop servo systems with internal pressure sensing provide improved stability, low drift, and highly repeatable pressure control for demanding automation and process applications.
For additional guidance, review ControlAir’s
Product Selection Guides
How to Determine the Appropriate Regulator
Applications
Electronic pressure regulators are used in systems requiring automated, proportional pneumatic pressure control with electronic integration and real-time adjustability.
Common applications include:
- Industrial automation systems
- Robotics and automated assembly lines
- Pneumatic actuation systems
- Semiconductor manufacturing equipment
- Laboratory and analytical instrumentation
- Leak testing and calibration systems
- Laser welding and cutting systems
- Process control and instrumentation
- Medical and diagnostic equipment
- Packaging and material handling systems
- Automated manufacturing machinery
- OEM pneumatic control systems
Electronic pressure regulators provide centralized pressure control and monitoring capabilities for applications where precise and repeatable pneumatic regulation is critical to system performance.
For more application-specific solutions, explore: Industries We Serve
Key Performance Considerations
When evaluating electronic pressure regulators, focus on performance, control accuracy, and system integration capability:
Accuracy, Repeatability, and Stability
Electronic pressure regulators must maintain highly accurate and repeatable output pressure despite varying inlet pressure and changing system demand. Closed-loop feedback systems improve stability and reduce pressure drift.
Response Time
Fast response times are critical for applications requiring dynamic pressure control, rapid system adjustment, and stable automated operation. Some ControlAir models offer response times as low as 0.8 seconds. System response times will vary based on downstream volumes.
Electronic Input Compatibility
Compatibility with 4–20 mA, 0–10 VDC, and digital communication protocols ensures seamless integration into industrial automation and PLC-based control systems.
Flow Capacity
The regulator must support downstream pneumatic devices without pressure lag or instability during high-demand operating conditions.
Closed-Loop Servo Control
Electronic pressure regulators with internal pressure sensors and dual solenoid valve systems provide highly stable closed-loop pressure regulation for demanding automation applications.

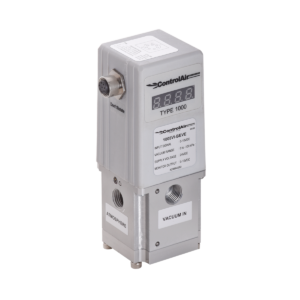

Vacuum and Pressure Regulation Capability
Some electronic regulators support both vacuum and positive pressure control for specialized laboratory, analytical, and automation applications.
Environmental Durability and Reliability
Industrial environments may require regulators with vibration resistance, high tolerance to impure air, and NEMA 4X / IP65 environmental protection.
System Integration and Automation Support
Electronic pressure regulators designed for industrial automation support centralized monitoring, remote pressure adjustment, and repeatable system control through PLC and network integration.
These factors directly affect control precision, automation performance, and long-term system reliability.
Certifications and Environmental Protection
ControlAir electronic pressure regulators are available with certifications and environmental protection options for demanding industrial and hazardous applications:
- NEMA 4X / IP65 environmental protection for dust, moisture, and harsh environments
- FM, CSA, ATEX, and IECEx certifications on select models
- Explosion-proof configurations for hazardous locations
- Corrosion-resistant designs for industrial process environments
- Vibration-resistant construction for automated machinery and industrial systems
Electronic pressure regulators designed for hazardous or demanding environments help maintain stable pneumatic control while meeting global safety and compliance requirements.
Engineering Resources
ControlAir provides technical resources to support product selection, system integration, and performance optimization:
Product Selection Guides
CAD Models & Product Specifier
Certifications
White Papers
FAQs
These resources provide detailed specifications, installation guidance, and application insights.
Need Help Selecting?
Choosing the right electronic pressure regulator depends on your electrical control requirements, pressure range, flow demand, automation architecture, and operating environment.
Provide your input signal type, output pressure range, and application details, and our team can help identify the best solution for your pneumatic control system.
Request a Quote
Ask an Expert
Find a Distributor
FAQs
What is an electronic pressure regulator?
An electronic pressure regulator combines electronic controls with pneumatic pressure regulation to automatically maintain a precise output pressure in response to an electrical input signal.
How does an electronic pressure regulator work?
Electronic pressure regulators use internal sensors, electronic controls, and solenoid valves to continuously monitor and adjust pneumatic pressure in response to an electrical control signal.
What input signals do electronic pressure regulators use?
Common input signals include 4–20 mA, 0–10 VDC, and digital communication protocols such as RS485 Modbus.
What applications use electronic pressure regulators?
Applications include industrial automation, robotics, semiconductor manufacturing, laboratory systems, leak testing, pneumatic actuation, and process control systems.
What factors affect electronic pressure regulator performance?
Key factors include response time, accuracy, flow capacity, feedback control stability, air supply quality, and environmental operating conditions.
