Description
Overview
The I/PAC Integrated Process Air Control package combines a field-mounted I/P transducer, Type 330 filter regulator, pressure gauge, and mounting hardware into a preassembled solution for process control applications. Designed to simplify installation and replacement, the I/PAC is available with either the Type 950XP or Type 595XP I/P transducer and provides a compact, field-rugged airset assembly.
The package can mount directly to a 2″ pipe, valve yoke, or other equipment using 2.25″ bolt spacing. Integrated units retain the applicable hazardous-area approvals of the selected I/P configuration, including FM, CSA, and ATEX certifications.
By combining signal conversion, air filtration and regulation, pressure indication, and mounting hardware into one assembly, the I/PAC reduces field assembly requirements and provides a convenient replacement or upgrade option for automated valve and process control systems.
Key Features
- Integrated I/P transducer and airset assembly
- Available with Type 950XP or Type 595XP I/P transducer
- Includes Type 330 filter regulator
- Includes pressure gauge
- Preassembled for simplified field installation
- Designed as a seamless replacement for existing automated control installations
- Direct mounting or 2″ pipe mounting
- Compatible with valve yokes and devices using 2.25″ bolt spacing
- Explosion-proof and intrinsically safe configurations
- FM, CSA, and ATEX approvals available depending on configuration
- Vibration and position insensitive
- Compact design for installations with limited space
- 4-20 mA input signal
- Multiple pneumatic output ranges
- Optional tapped exhaust
- Optional 5-micron filtration
Performance Characteristics

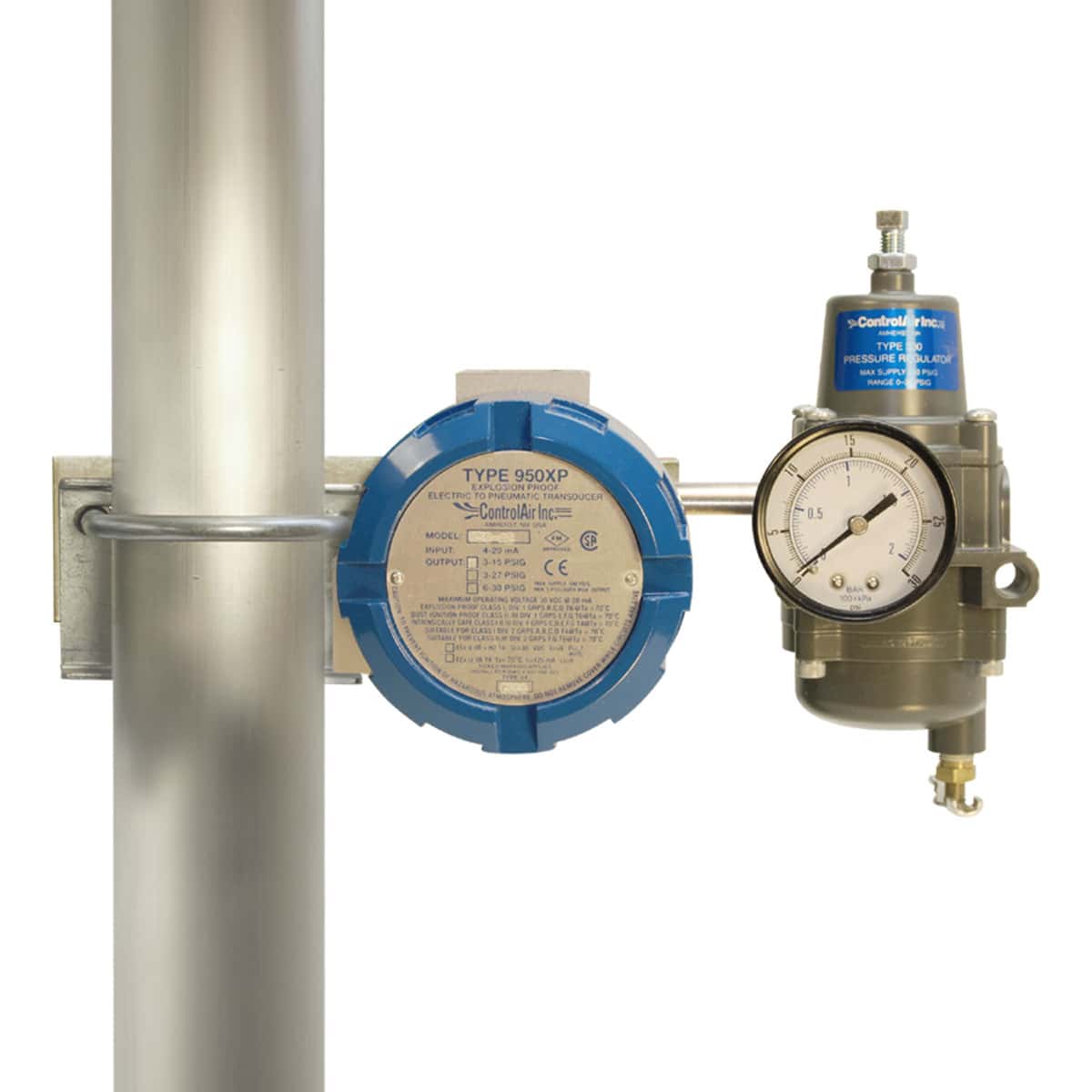

Type 950XP / Type 330 Combination
- Input Signal: 4-20 mA
- Output Ranges: 3-15 psig (0.20-1.0 bar), 3-27 psig (0.20-1.8 bar), or 6-30 psig (0.40-2.0 bar)
- Air Consumption: 3.0 scfh at mid-range
- Maximum Supply Pressure: 100 psig (7 bar)
- Supply Requirement: Minimum 5 psig (0.3 bar) above maximum output pressure
- Flow Capacity: 4.5 scfm at 25 psig supply
- Flow Capacity: 12.0 scfm at 100 psig supply
- Temperature Range: -40°F to 160°F (-40°C to 71°C)
- Loop Load: 10 V at 20 mA
- Linearity: 0.10% of span
- Hysteresis: 0.10% of span
- Deadband: Less than ±0.02% of span
- Repeatability: Less than ±0.10% of span
- Mounting Orientation Effect: No measurable effect
- Air Supply Sensitivity: No measurable effect
- Housing: NEMA 4X / IP65
- Pneumatic Port: 1/4″ NPT
- Electrical Port: 1/2″ NPT or M20-1.5 for ATEX configurations

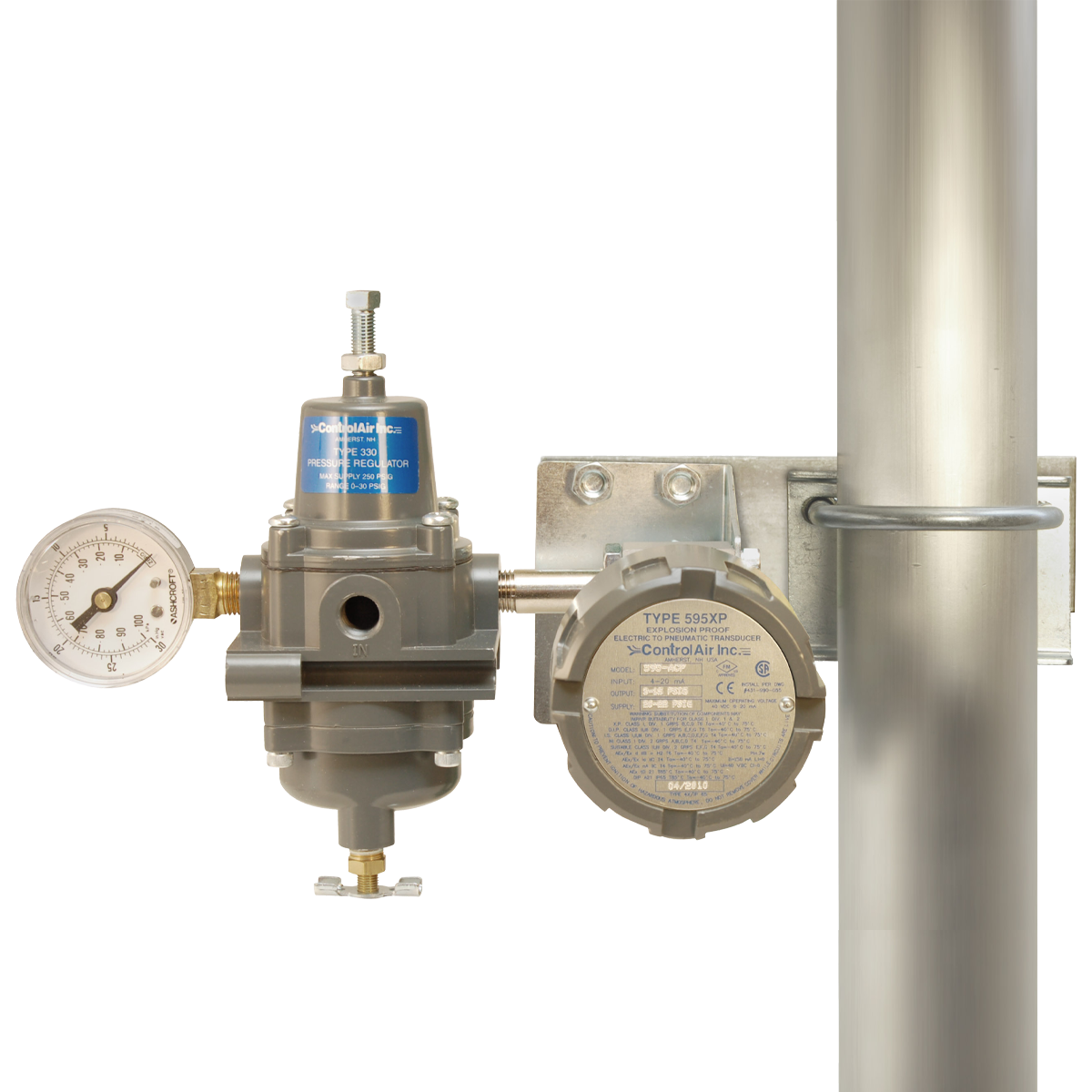

Type 595XP / Type 330 Combination
- Input Signal: 4-20 mA
- Output Ranges: 3-15 psig (0.20-1.0 bar), 3-27 psig (0.20-1.8 bar), or 6-30 psig (0.40-2.0 bar)
- Air Consumption: 0.1 scfm
- Maximum Supply Pressure, 3-15 psig Range: 22 psig (1.5 bar)
- Maximum Supply Pressure, 3-27 and 6-30 psig Ranges: 42 psig (2.8 bar)
- Flow Capacity: 2.4 scfm maximum
- Temperature Range: -67°F to 185°F (-55°C to 85°C)
- Loop Load: 5.2 V at 70°F
- Linearity: Less than ±0.5% of span
- Hysteresis: Less than ±0.5% of span
- Deadband: Less than ±0.1% of span
- Repeatability: Less than ±0.3% of span; less than ±0.15% typical
- Housing: NEMA 4X / IP65
- Pneumatic Port: 1/4″ NPT
- Electrical Port: 1/2″ NPT or M20-1.5 for ATEX configurations
The Type 950XP and Type 595XP combinations provide different performance characteristics, allowing the I/PAC to be matched to application requirements for flow capacity, accuracy, temperature range, and hazardous-area certification.
How to Select the Right Configuration
Selecting the correct I/PAC configuration depends on the required I/P transducer performance, pneumatic output range, hazardous-area approval, filtration requirement, exhaust configuration, and mounting arrangement.
- Select the Type 950XP / Type 330 combination when higher flow capacity and higher precision are required
- Select the Type 595XP / Type 330 combination when compact size and extended low-temperature capability are priorities
- Select the 3-15 psig output range for standard pneumatic control valve and actuator applications
- Select the 3-27 psig or 6-30 psig output range when higher pneumatic output pressure is required
- Select the Field Selectable Outputs option on applicable Type 950XP configurations when field-adjustable output ranges are required
- Select the Tapped Exhaust option when exhaust air must be captured or routed away from the assembly
- Select the 5 Micron Filter option when finer particulate filtration is required
- Select the ATEX option for installations requiring the corresponding ATEX hazardous-area certification
- Use direct mounting where the assembly can attach directly to the controlled equipment
- Use the bracket arrangement for 2″ pipe mounting, valve-yoke mounting, or offset pipe mounting
For additional guidance:
Applications
The I/PAC is designed for field-mounted process control installations where an electrical control signal must be converted to a regulated pneumatic output and where a complete airset assembly is preferred.
- Control valve automation
- Pneumatic valve actuators
- Valve positioner air supply
- Process control systems
- Industrial automation systems
- Field-mounted I/P conversion
- Hazardous-area process instrumentation
- Oil and gas processing
- Chemical processing
- Refining applications
- Power generation
- Remote valve control
- Replacement of existing I/P airset assemblies
- Compact valve-yoke installations
Mounting & Installation
The I/PAC is designed to simplify field installation by combining the I/P transducer, Type 330 filter regulator, pressure gauge, and mounting bracket into a preassembled package.
The dimensional drawings on page 2 of the specification sheet show both the Type 950XP / Type 330 and Type 595XP / Type 330 combinations in direct pipe-mount and yoke-mount or offset pipe-mount configurations. The mounting bracket accommodates 2″ U-bolts and equipment using 2.25″ mounting-hole spacing.
Models & Configurations
Type 950XP / Type 330 Combination
I-950-[Input Signal][Output Pressure][Options]-330-[Options]
Input Signal
- A = 4-20 mA
Output Pressure
- C = 3-15 psig (0.2-1.0 bar)
- D = 3-27 psig (0.2-1.8 bar)
- E = 6-30 psig (0.4-2.0 bar)
Type 950XP Options
- A = Field Selectable Outputs, 0.25% accuracy
- E = Approved FM/CSA or ATEX configuration
- K = ATEX Explosion-Proof / Intrinsically Safe configuration
Type 330 Options
- E = Tapped Exhaust
- F = 5 Micron Filter
Type 595XP / Type 330 Combination
595-[Input Signal][Output Pressure][Connection][Options]-330-[Options]
Input Signal
- A = 4-20 mA
Output Pressure
- C = 3-15 psig (0.2-1.0 bar)
- D = 3-27 psig (0.2-1.8 bar)
- E = 6-30 psig (0.4-2.0 bar)
Connection
- P = Ported
Type 595XP Options
- K = ATEX Explosion-Proof / Intrinsically Safe configuration
Type 330 Options
- E = Tapped Exhaust
- F = 5 Micron Filter
The ordering diagrams on page 4 identify the configuration codes for both I/PAC assemblies, including input signal, pneumatic output range, hazardous-area options, filter regulator options, and connection type.
Hazardous Area Approvals
I/PAC configurations are available with Factory Mutual, Canadian Standards Association, and ATEX approvals depending on the selected I/P transducer and model configuration. The specific classifications vary between the Type 950XP and Type 595XP combinations and should be matched to the hazardous-area requirements of the installation.
- FM hazardous-area approvals available
- CSA hazardous-area approvals available
- ATEX approvals available
- Explosion-proof configurations
- Intrinsically safe configurations
- Nonincendive configurations on applicable models
- Flameproof ATEX configurations
- Limited-energy / non-sparking configurations on applicable models
- NEMA 4X enclosure protection
- IP65 enclosure protection on applicable ATEX configurations
The hazardous-area classification tables on page 4 provide the specific Division, Group, ATEX zone, entity parameter, temperature code, and enclosure ratings for each I/P configuration. The specification sheet also notes that applicable units can be used with methane or natural-gas supply pressure media when ordered with tapped exhaust and the required factory-sealed conduit assembly.
Materials of Construction
- Housing: Chromate-Treated Aluminum with Epoxy Paint
- Enclosure Rating: NEMA 4X / IP65
- Elastomers: Buna-N
- Trim: Stainless Steel, Brass, and Zinc-Plated Steel
The I/PAC’s I/P assembly uses a chromate-treated aluminum housing with epoxy coating and industrial trim materials for field-mounted process applications.
Technical Resources
FAQs
What is the I/PAC Integrated Process Air Control package?
The I/PAC is a preassembled field-mounted package that combines a ControlAir I/P transducer, Type 330 filter regulator, pressure gauge, and mounting bracket for process control applications.
Which I/P transducers are available with the I/PAC?
The I/PAC can be configured with either the Type 950XP or Type 595XP I/P transducer combined with a Type 330 filter regulator.
What input signal does the I/PAC use?
The I/PAC uses a standard 4-20 mA electrical input signal.
What pneumatic output ranges are available?
Available pneumatic output ranges are 3-15 psig, 3-27 psig, and 6-30 psig.
What is included with the I/PAC assembly?
The I/PAC is supplied as an integrated package with an I/P transducer, Type 330 filter regulator, pressure gauge, and mounting hardware.
How can the I/PAC be mounted?
The I/PAC can be mounted directly, on a 2″ pipe, or on valve yokes and other equipment using 2.25″ bolt spacing.
What is the difference between the Type 950XP and Type 595XP I/PAC configurations?
The Type 950XP configuration provides higher flow capacity and tighter performance specifications, while the Type 595XP configuration offers a lower minimum operating temperature and a more compact I/P platform.
Is the I/PAC suitable for hazardous areas?
Yes. I/PAC configurations are available with FM, CSA, and ATEX hazardous-area approvals, including explosion-proof and intrinsically safe configurations.
Is a tapped exhaust option available?
Yes. A tapped exhaust option is available for the Type 330 filter regulator and for applicable I/P configurations where captured exhaust is required.
Can the I/PAC be ordered with finer filtration?
Yes. A 5-micron filter option is available for the Type 330 filter regulator.
What type of air should be supplied to the I/PAC?
The I/PAC is designed for clean, dry, oil-free instrument air filtered to 40 microns unless a finer filtration option is selected.
Is the I/PAC affected by mounting position?
The Type 950XP configuration has no measurable mounting orientation effect, while the Type 595XP configuration specifies less than ±0.5% change per 90-degree change in mounting orientation.
What enclosure rating does the I/PAC provide?
The I/P assembly uses a NEMA 4X enclosure, with IP65 protection identified for applicable configurations.
