Pneumatic Volume Boosters, Volume Boosters & Air Relays

Home / Volume Boosters & Air Relays / Type 600 Volume Booster

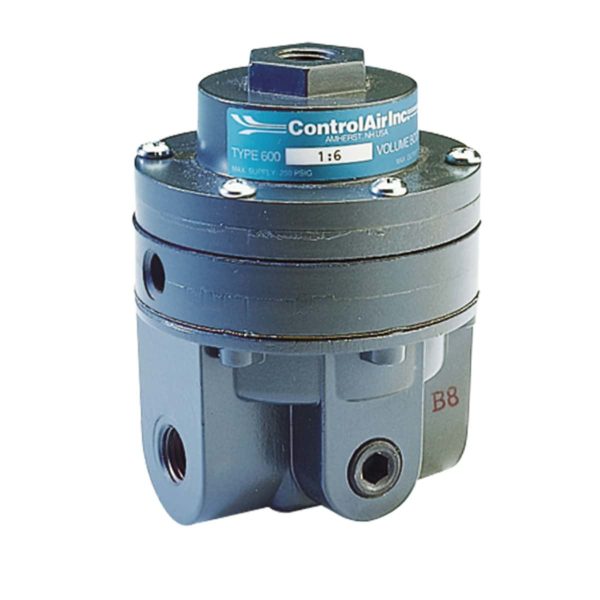

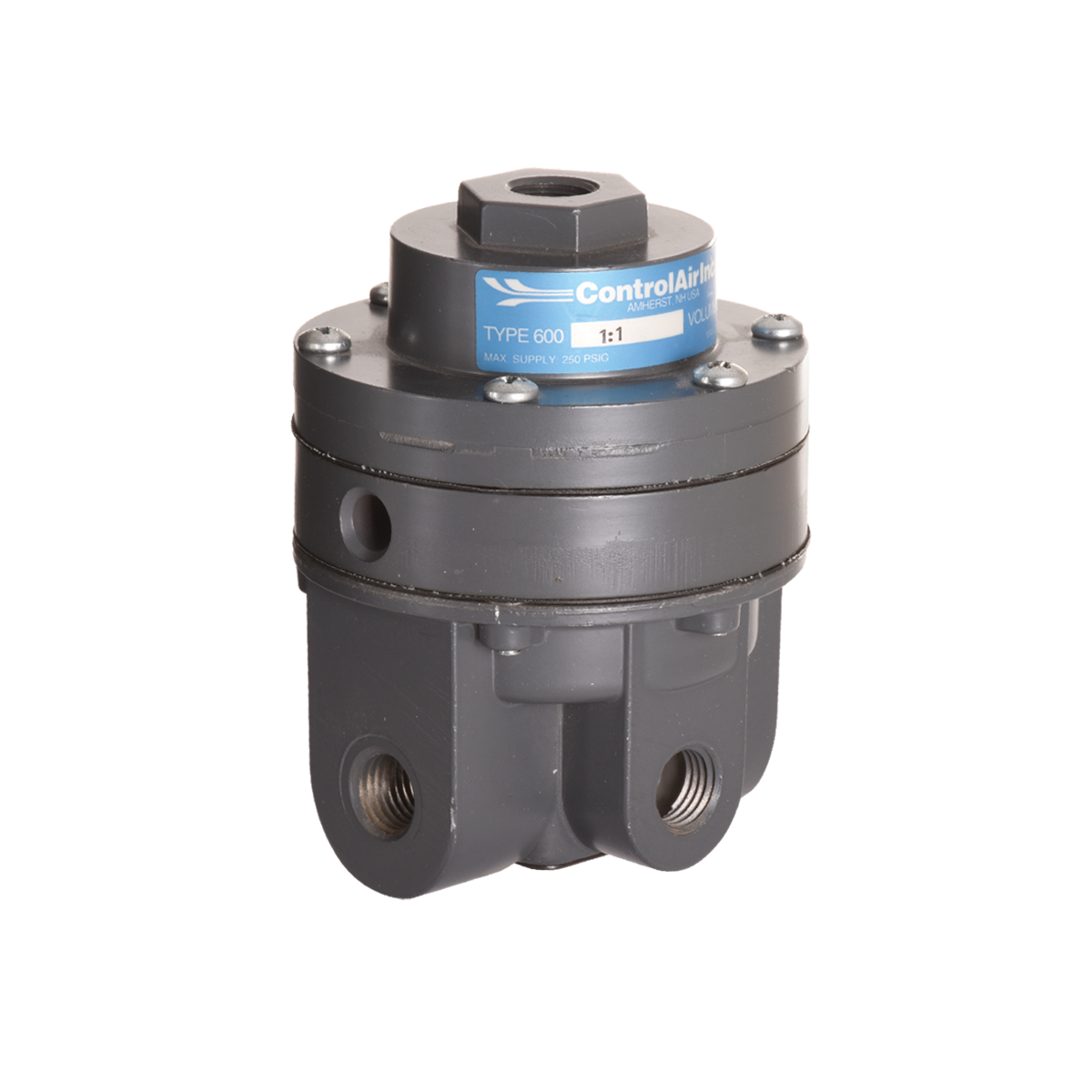

Type 600 Volume Booster

Type 600 Volume Booster
Ex Certification Logo EAC Logo RoHS Logo

PDF Sales Sheet

Instructions

Product Configurator

3D CAD MODELS

  • Description
  • Specifications
  • Ordering Information

Meet high flow requirements with a low flow pneumatic signal

The Type 600 ratio relay volume booster is designed to use a pnuematic signal to produce an output pressure which has high flow capacity and can be amplified. This unit is most useful for systems requiring the conversion of a low flow control signal to the higher flow requirements of an operating system. Using an independent supply pressure for greater volume, the Type 600 relays up to 50 scfm (1,400 Nl/min) flow capacity to a final control element such as a valve actuator. The standard signal to output ratio is 1:1, however, the Type 600 is also available with an amplified ratio of 1:2, 1:3 and 1:6.

Flow Capacity

50 scfm (1415 Nl/min)

Port Size

1/2" BSP, 1/2" NPT, 1/4" BSP, 1/4" NPT, 3/8" BSP, 3/8" NPT

Signal Port Size

1/4" NPT, 1/4" BSP

Exhaust Port Size (optional)

1/8" NPT

Max. Flow Cv

1

Exhaust Capacity

15 to 10 scfm (425 to 283 Nl/min)

Signal/Output Ratio

1:1, 1:2, 1:3, 1:6

Sensitivity (depending on ratio) water column

0.25" to 1.5" (0.64 to 3.8 cm)

Ratio Accuracy- % of output span w/ 3-15 psig (0.2 to 1.05 bar) signal

1.0% to 2.0%

Zero Error- % of output span w/ 3-15 psig (0.2 to 1.05 bar) signal

2.0% to 3.0%

Supply Pressure Sensitivity

0.1 to 0.6 psig for a change of 50 pis (3.5 bar) in supply pressure

Air Consumption, Maximum depending on ouput range

1.0 to 10 scfh (0.5 to 5.0 Nl/min)

Max. Supply Pressure

250 psig (17 bar)

Max. Output Pressure

150 psig (10 bar)

Max. Signal Pressure depending on ratio

150 to 25 psig (10.34 to 1.27 bar)

Ambient Temperature Limits

-40° to 160°F (-40° to 71°C)

Weight

1.4 lbs (635 gm)

Mounting Options

Pipe, panel, bracket

Body Materials

Aluminium

Other Internal Materials

Stainless steel, brass, plated steel, acetal, nitrile, polyester

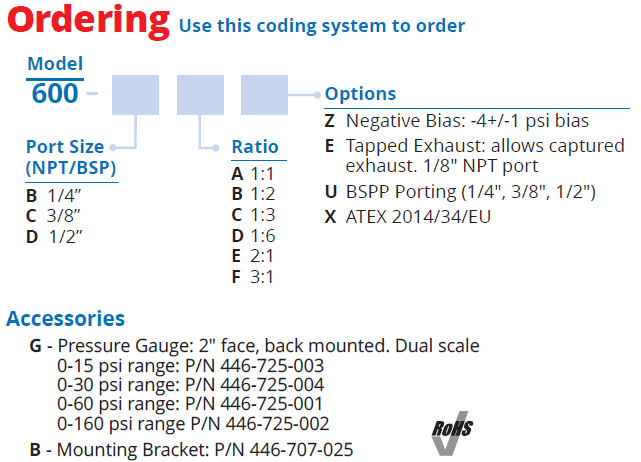

Part
Number
Port Size
(NPT/BSP)
Ratio
(Signal Output)
600-BA 1/4″ 1:1
600-BB 1/4″ 1:2
600-BC 1/4″ 1:3
600-BD 1/4″ 1:6
600-CA 3/8″ 1:1
600-CB 3/8″ 1:2
600-CC 3/8″ 1:3
600-CD 3/8″ 1:6
600-DA 1/2″ 1:1
600-DB 1/2″ 1:2
600-DC 1/2″ 1:3
600-DD 1/2″ 1:6

OPTIONS – Add proper letter onto end of model number:

E – Tapped Exhaust: allows captured exhaust. 1/4″ NPT port.

Z – Fixed Negative Bias: -4+ psi bias

U – BSP Porting (1/4″, 3/8″, 1/2″)

X – ATEX: 94/9/EC Approval II 2 GD

ACCESSORIES:

B – Mounting Bracket: P/N 446-707-025

G – Pressure Gauge: 2″ face, back mounted. Dual scale
0-15 psi P/N: 446-725-003
0-30 psi P/N: 446-725-004
0-60 psi P/N: 446-725-001
0-160 psi P/N: 446-725-002
