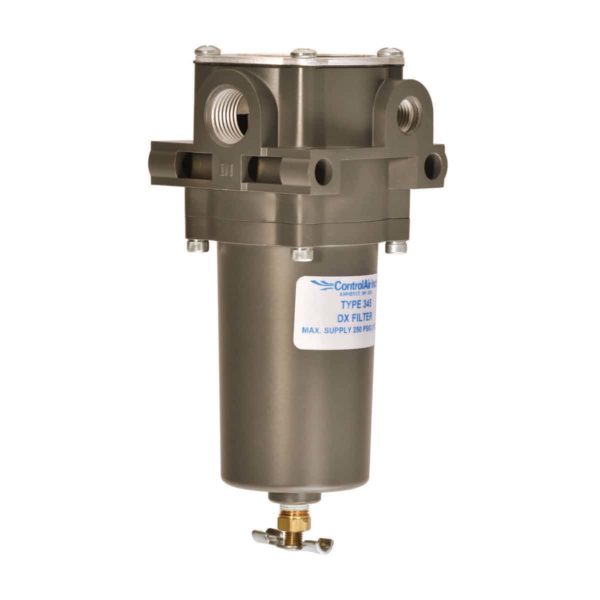

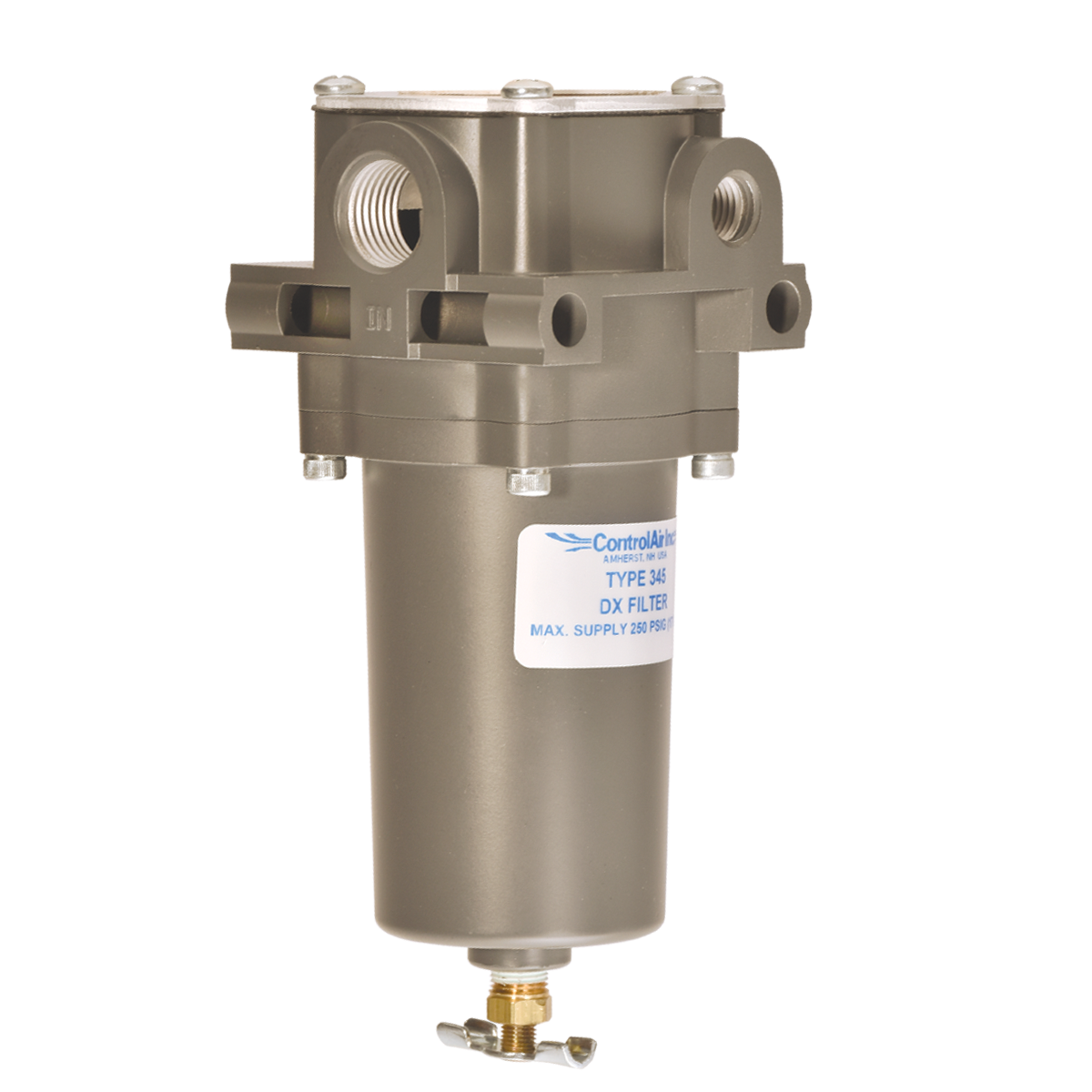

The Type 345 Filter unit is a 40-micron (optional 5 micron) depth filter that removes dirt, moisture and other particles from air and gas lines. Robustly constructed of die-cast aluminum with a baked epoxy finish, this unit stands up in corrosive operating conditions. This filter is an economical alternative for air supply line applications that don’t require a pressure reducing regulator. Available in 1/4″ and 1/2″ NPT porting, manual and automatic drain. Optional 5-micron filter.
Options and features (see specification tab for full list):
- ¼” and ½” port sizes
- 40 or 5 micron filter
- Autodrain capabilities
- Low temperature option: down to -62°F
