Air Relays

Home / Air Relays / Mite 85 Air Relay

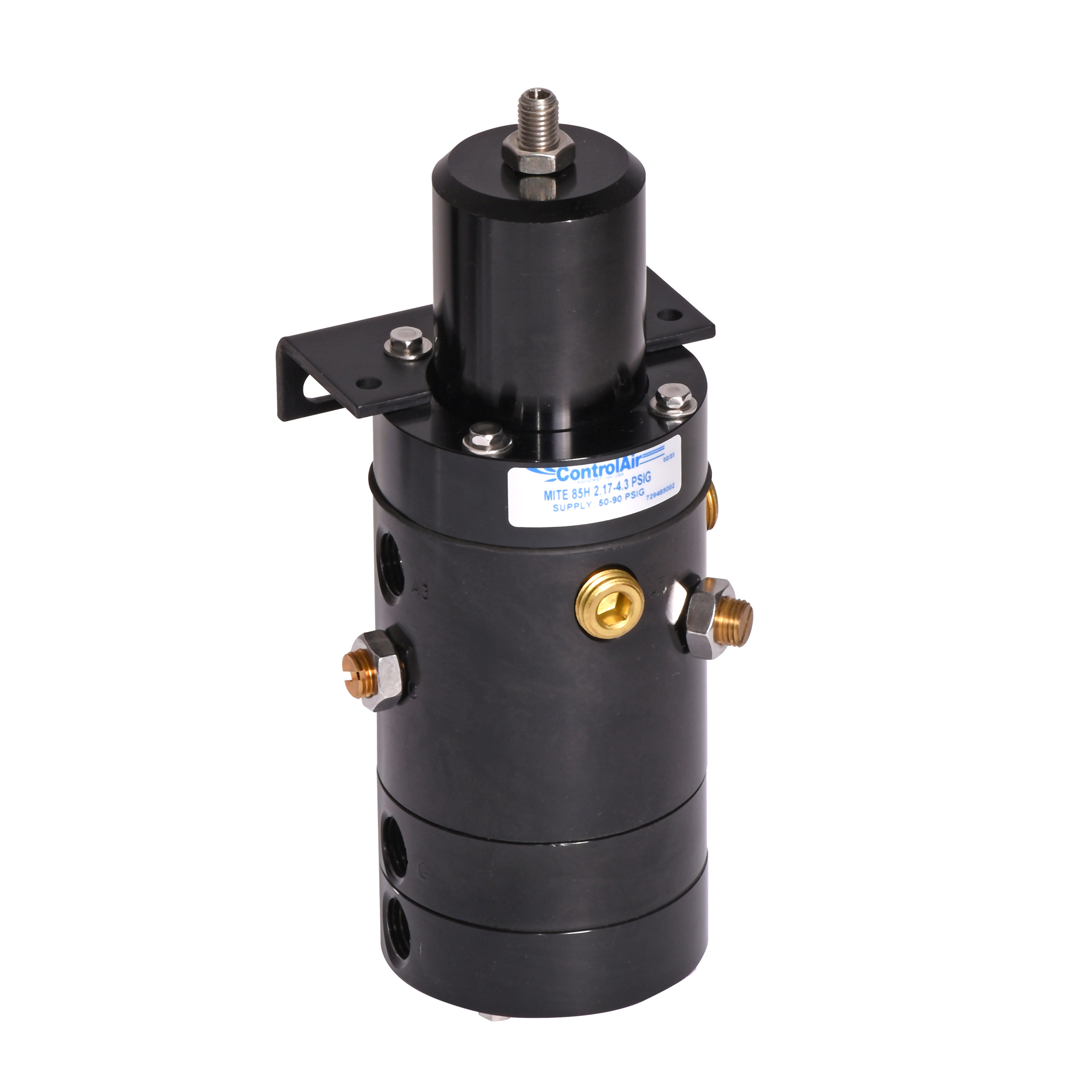

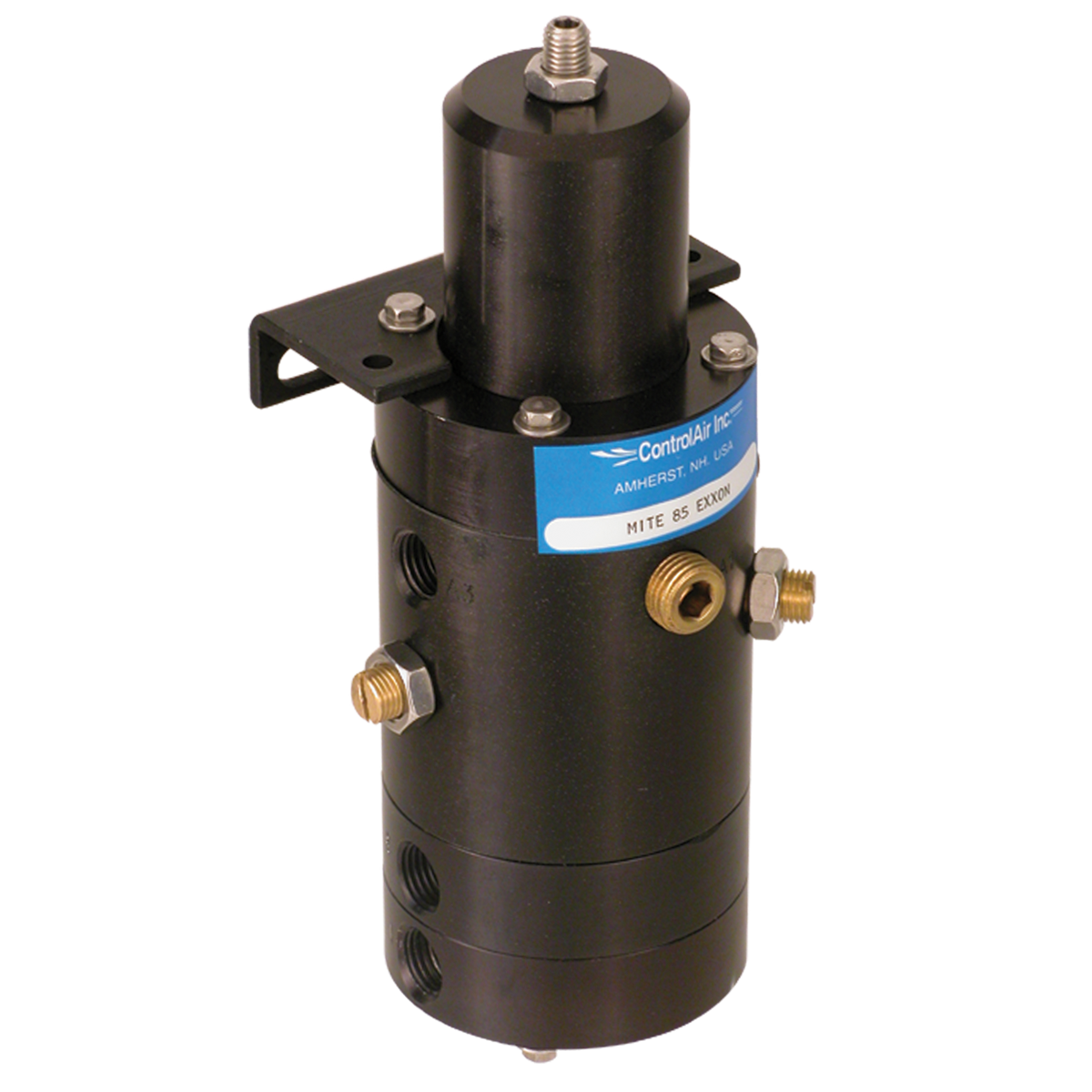

Mite 85 Air Relay

Mite 85 Air Relay
RoHS Logo

PDF Sales Sheet

Instructions

  • Description
  • Specifications
  • Ordering Information

Snap-acting 3-way valve with two trip points

The Mite 85 allows you to establish two adjustable trip points that control flow through a 3-way valve. An increasing signal that exceeds the high trip point will open “I” port to “H”. A decreasing signal pressure that drops below the low trip point will vent port “H”. This switching action is reversible and repeatable without having to manually reset. Use the Mite 85 to passively switch to a secondary controller in case the primary system fails.

Pressure Rating

90 psig (6.2 bar)

Ambient Temperature Limits

-40° to 180°F (-40° to 82°C)

Port Sizes

1/4" NPT

Weight

1.2 lb (0.55 kg)

Body Materials

Aluminium

Other Materials

plated steel, neoprene, brass and stainless steel

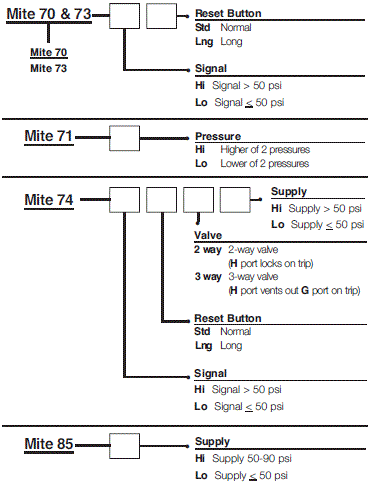

Ordering Information for Mite 85
